RFLW3N9000C, RFLW3N3900C, High Frequency Wire Bondable RF Spiral Inductor

www.vishay.com RFLW 3N Vishay Electro-Films High Frequency Wire Bondable RF Spiral Inductor, 0.030" x 0.030" RFLW series of thin film spiral induct.
RFLW 30 x 30 NO PASS 20 nH 20 % WS R F LW3 N 2 0 0 0 BMNWS MODEL SIZE PASSIVATION RFLW 3 = 30 x 30 5 = 50 x 50 N = none INDUCTANCE (n.

datasheet Preview Page 1 from Datasheet4u.com

RFLW3N3900C-Vishay.pdf

RFLW3N9000C Datasheet Preview — This datasheet PDF includes multiple part numbers: RFLW3N9000C, RFLW3N3900C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RFLW3N9000C, RFLW3N3900C

Manufacturer:

Vishay ↗

File Size:

377.10 KB

Description:

High Frequency Wire Bondable RF Spiral Inductor

Note:

This datasheet PDF includes multiple part numbers: RFLW3N9000C, RFLW3N3900C.
Please refer to the document for exact specifications by model.

Features

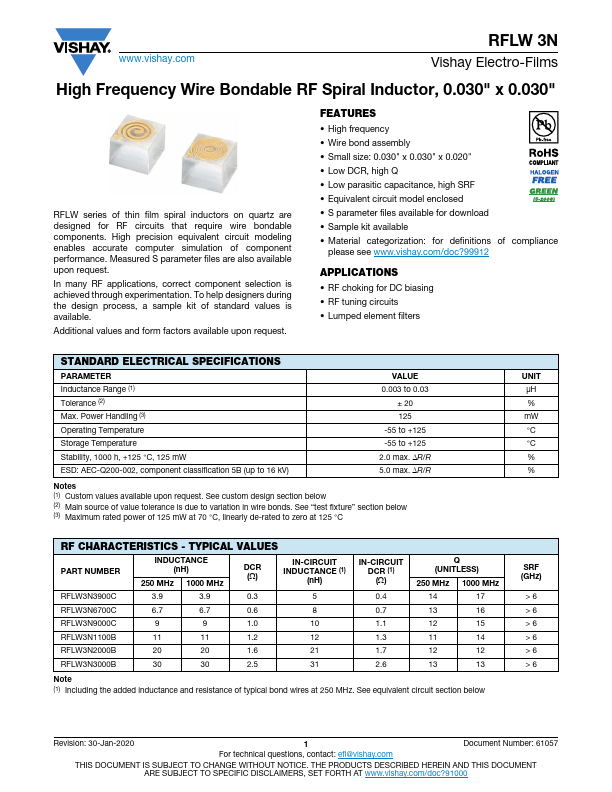

* High frequency
* Wire bond assembly
* Small size: 0.030" x 0.030" x 0.020"
* Low DCR, high Q
* Low parasitic capacitance, high SRF

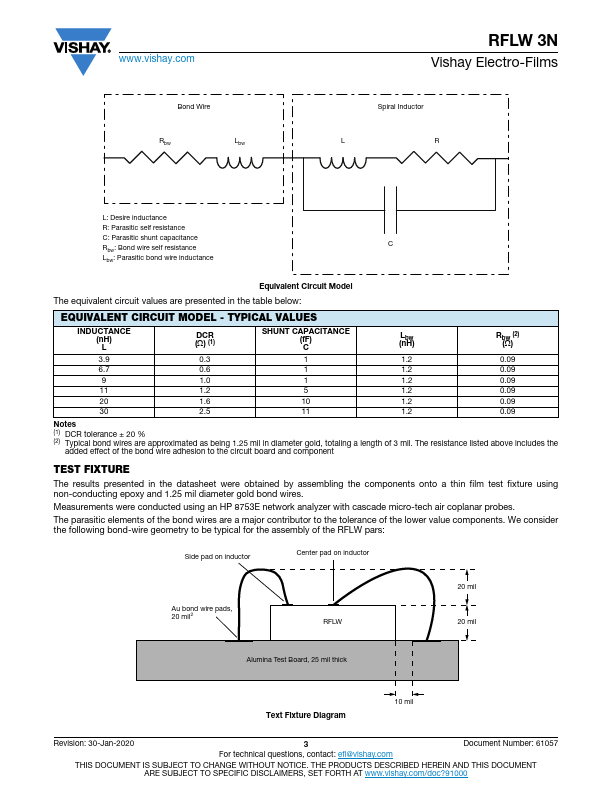

* Equivalent circuit model enclosed
* S parameter files available for download
* Sample kit available
