E3M0160120D Silicon Carbide Power MOSFET

Wolfspeed

Description

E3M0160120D Silicon Carbide Power MOSFET E-Series Automotive N-Channel Enhancement Mode .

📥 Download Datasheet

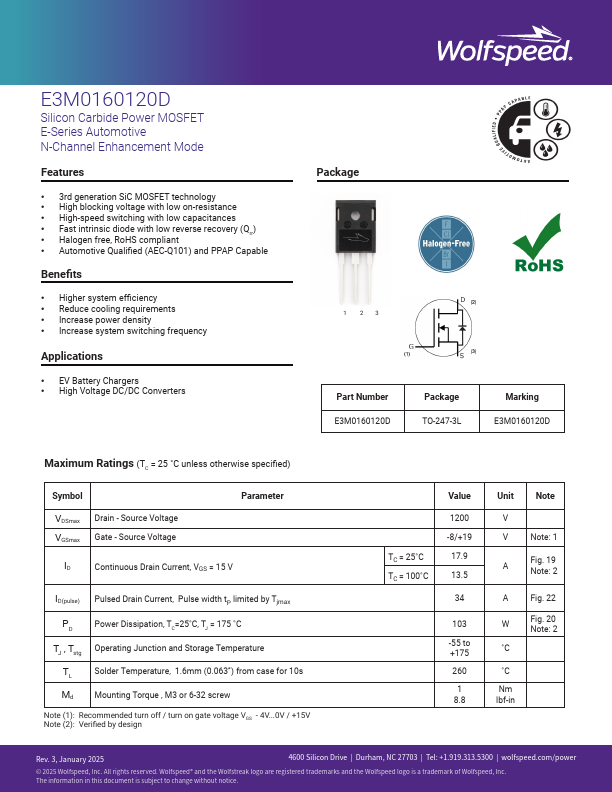

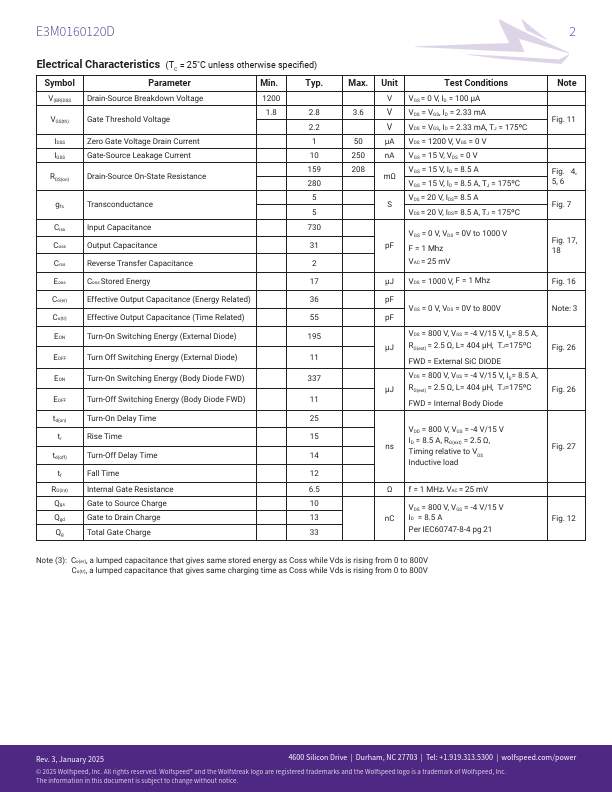

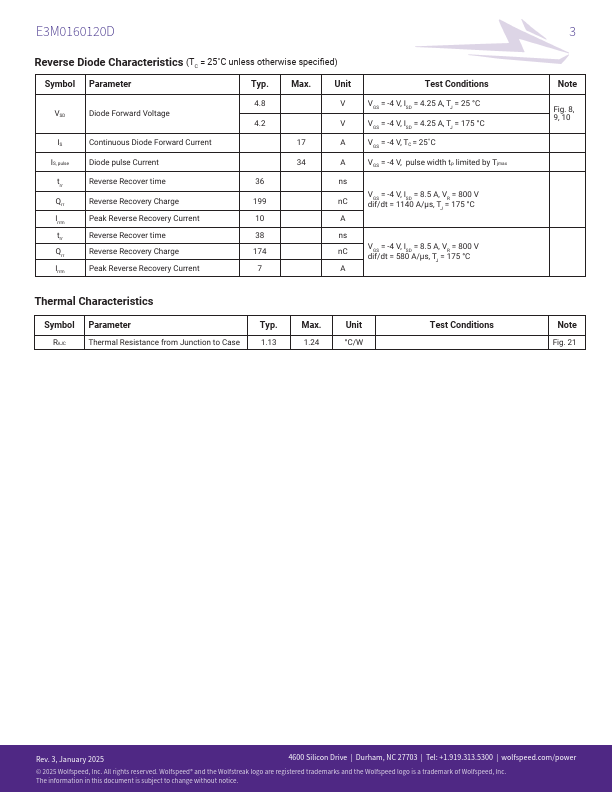

E3M0160120D Datasheet Preview — Preview of E3M0160120D PDF

Datasheet Specifications

Part number: E3M0160120D
Manufacturer: Wolfspeed
File Size: 1.04 MB
Datasheet: E3M0160120D-Wolfspeed.pdf
Description: Silicon Carbide Power MOSFET

Features

* 3rd generation SiC MOSFET technology
* High blocking voltage with low on-resistance
* High-speed switching with low capacitances
* Fast intrinsic diode with low reverse recovery (Qrr) Halogen free, RoHS compliant
* Automotive Qualified (AEC-Q

Applications

* EV Battery Chargers
* High Voltage DC/DC Converters Part Number Package Marking E3M0160120D TO-247-3L E3M0160120D Maximum Ratings (TC = 25 ˚C unless otherwise specified) Symbol VDSmax VGSmax Drain - Source Voltage Gate - Source Voltage Parameter ID Continuous Drain C
