AO8205A Datasheet - Xinchuang Century Electronics

AO8205A Dual N-Channel Enhancement Mode Field Effect Transistor

AO8205A Dual N-C hannel E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y VDS S 20V ID R DS (ON) (m ohm)Max 25@VGS = 4 . 5 V 5A 40@V GS = 2 . 5 V F E AT UR E S S uper high dense cell design for low R DS(ON). R ugged and reliable. S urface Mount P ackage. S1 D1/D2 S2 S OT 23 - 6 Top View 16 25 34 G1 D1/D2 G2 D1 D2 G1 S1 G2 S2 ABS OLUTE MAXIMUM R ATINGS (TA=25 C unless otherwise noted) P arameter S ymbol Limit Unit Drain-S ource Voltage VDS 20 V Gate-S ource.

AO8205A-XinchuangCenturyElectronics.pdf

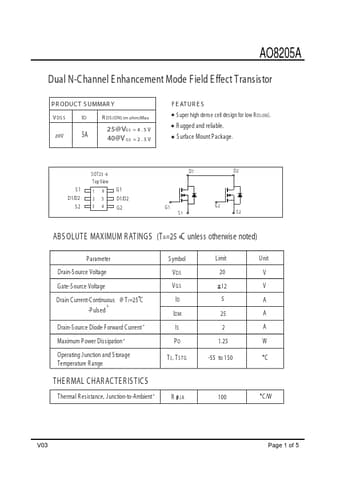

Preview of AO8205A PDF

Datasheet Details

Part number:

AO8205A

Manufacturer:

Xinchuang Century Electronics

File Size:

65.63 KB

Description:

Dual n-channel enhancement mode field effect transistor.
