XP15P10GH P-CHANNEL ENHANCEMENT MODE POWER MOSFET

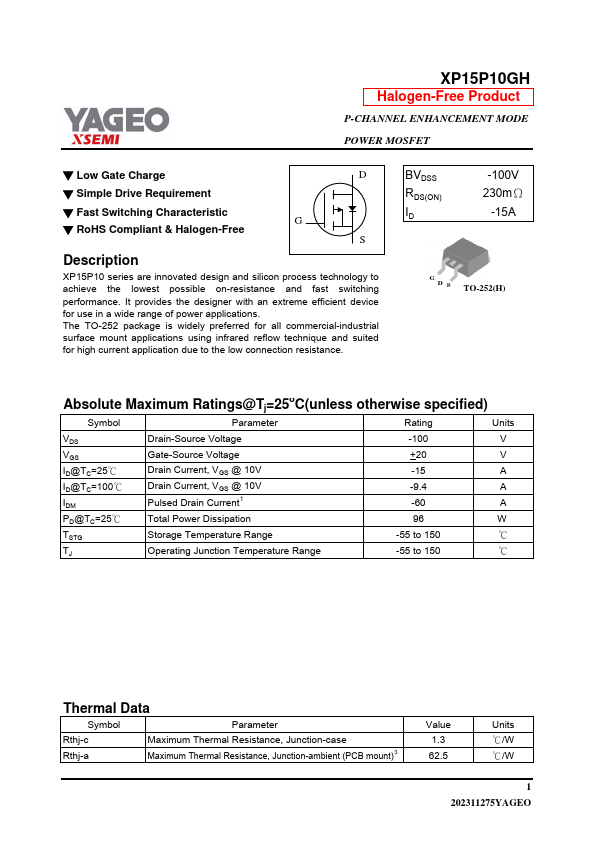

📥 Download Datasheet Datasheet Preview Page 1

Description

XP15P10GH Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low Gate Charge D ▼ Simple Drive Requirement ▼ Fast Switching Characteris.
XP15P10 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP15P10GH PDF

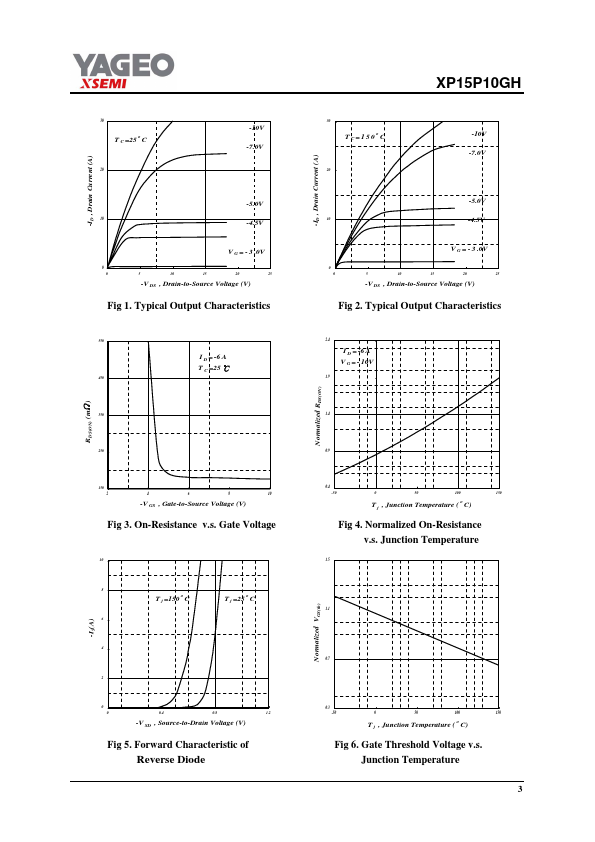

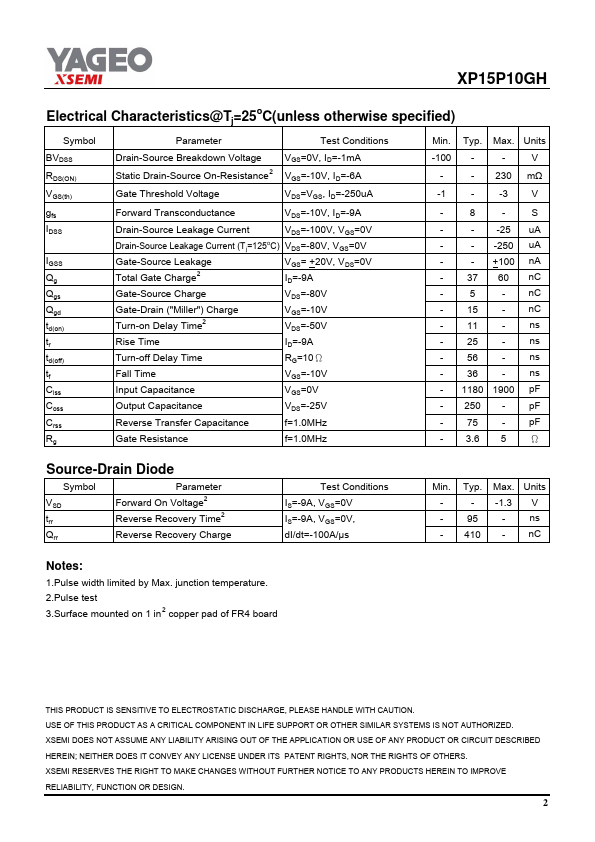

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP15P10GH
Manufacturer
YAGEO
File Size
211.40 KB
Datasheet
XP15P10GH-YAGEO.pdf
Description
P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID -100V 230mΩ -15A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless
