ZL30146

SyncE SONET/SDH Line Card PLL

Zarlink Semiconductor

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Microchip Technology Inc	ZL30146GGG2	IC SYNCHRONIZER ETH 64CABGA	DigiKey	260	100 units	$36.71	🛒 Buy Now

ZL30146 Datasheet (166.36 KB)

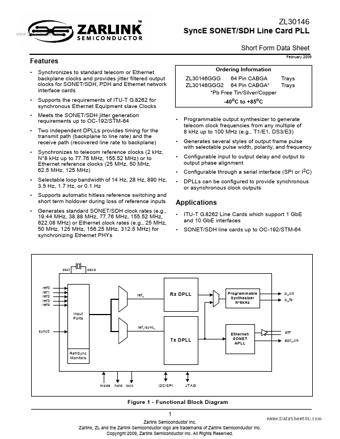

ZL30146 Datasheet Preview — Preview of ZL30146 PDF

Datasheet Details

Part number:

ZL30146

Manufacturer:

Zarlink Semiconductor

File Size:

166.36 KB

Description:

Synce sonet/sdh line card pll.

ZL30146 Features

* Synchronizes to standard telecom or Ethernet backplane clocks and provides jitter filtered output clocks for SONET/SDH, PDH and Ethernet network interface cards Supports the requirements of ITU-T G.8262 for synchronous Ethernet Equipment slave Clocks Meets the SONET/SDH jitter generation r

ZL30146 General Description

The ZL30146 OC-192/STM-64 PDH/SONET/SDH/Synchronous Ethernet Network Interface Synchronizer is a highly integrated device that provides timing for both PDH/SONET/SDH and Ethernet network interface cards. A functional block diagram is shown in Figure 1. This device is ideally suited for designs that.
