DS90CP04 - 1.5Gbps 4x4 LVDS Crosspoint Switch

Product Overview

Texas Instruments

Part number	DS90CP04
Manufacturer	Texas Instruments
File Size	918.28 KB
Description	1.5Gbps 4x4 LVDS Crosspoint Switch
Datasheet	DS90CP04 Datasheet

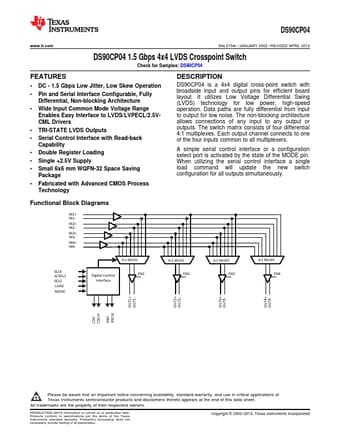

Additional preview pages of the DS90CP04 datasheet.

DS90CP04 is a 4x4 digital cross-point switch with broadside input and output pins for efficient board layout.

1.
2 DC - 1.5 Gbps Low Jitter, Low Skew Operation.
Pin and Serial Interface Configurable, Fully Differential, Non-blocking Architecture.
Wide Input Common Mode Voltage Range Enables Easy Interface to LVDS/LVPECL/2.5VCML Drivers.
TRI-STATE LVDS Outputs.
Serial Control Interface with Read-back Capability.
Double Register Loading.
Single +2.5V Supply.
Small 6x6 mm WQFN-32 Space Saving Package.
Fabricated with Advanced C.
