TSB41LV03A

IEEE 1394a Three-Port Cable Transceiver/Arbiter

TSB41LV03A Features

* to Conserve Energy in Battery Powered Applications Include: Automatic Device Power-Down During Suspend, Device Power-Down Terminal, Link Interface Disable via LPS, and Inactive Ports Powered Down D Ultra Low-Power Sleep Mode D Node Power Class Information Signaling for System Power Management D Cabl

TSB41LV03A General Description

The TSB41LV03A provides the digital and analog transceiver functions needed to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining.

TSB41LV03A Datasheet (629.14 KB)

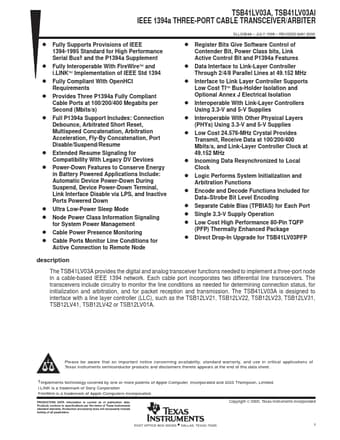

Preview of TSB41LV03A PDF

Datasheet Details

Part number:

TSB41LV03A

Manufacturer:

Texas Instruments ↗

File Size:

629.14 KB

Description:

Ieee 1394a three-port cable transceiver/arbiter.
TSB41LV03A, TSB41LV03AI IEEE 1394a THREE-PORT CABLE TRANSCEIVER/ARBITER D Fully Supports Provisions of IEEE 1394-1995 Standard for High Performance S.
