TSB41AB1

IEEE 1394a-2000 One-Port Cable Transceiver/Arbiter

TSB41AB1 Features

* D IEEE 1394a-2000 Compliant Common Mode Noise Filter on Incoming TPBIAS D Extended Resume Signaling for Compatibility With Legacy DV Devices, and Terminal- and Register-Compatibility With TSB41LV01, Allow Direct Isochronous Transmit to Legacy DV Devices With Any Link Layer Even When Root D Power-Dow

TSB41AB1 General Description

The TSB41AB1 provides the digital and analog transceiver functions needed to implement a one-port node in a cable-based IEEE 1394 network. The cable port incorporates one differential line transceiver. The transceiver includes circuitry to monitor the line conditions as needed for determining connec.

TSB41AB1 Datasheet (2.08 MB)

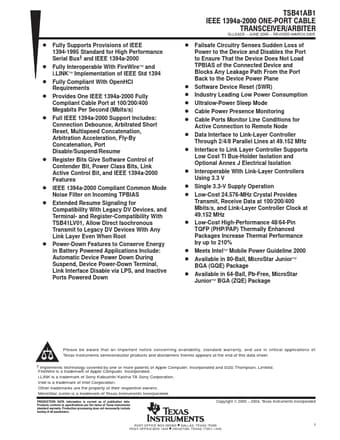

Preview of TSB41AB1 PDF

Datasheet Details

Part number:

TSB41AB1

Manufacturer:

Texas Instruments ↗

File Size:

2.08 MB

Description:

Ieee 1394a-2000 one-port cable transceiver/arbiter.
D Fully Supports Provisions of IEEE 1394-1995 Standard for High Performance Serial Bus† and IEEE 1394a-2000 D Fully Interoperable With FireWire and i.
