TSB41BA3A-EP

IEEE 1394b THREE-PORT CABLE TRANSCEIVER/ARBITER

TSB41BA3A-EP Features

* to Conserve Energy in Battery Powered Applications † Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle

TSB41BA3A-EP General Description

ordering information The TSB41BA3A-EP provides the digital and analog transceiver functions needed to imple- ment a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line condit.

TSB41BA3A-EP Datasheet (849.70 KB)

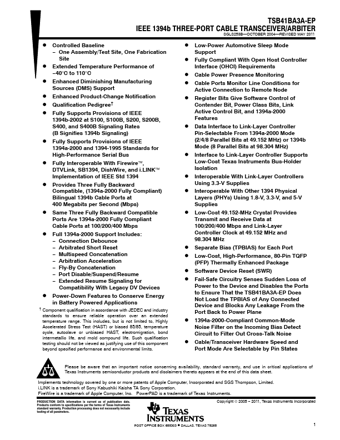

Preview of TSB41BA3A-EP PDF

Datasheet Details

Part number:

TSB41BA3A-EP

Manufacturer:

Texas Instruments ↗

File Size:

849.70 KB

Description:

Ieee 1394b three-port cable transceiver/arbiter.
TSB41BA3A-EP IEEE 1394b THREE-PORT CABLE TRANSCEIVER/ARBITER SGLS253B

*OCTOBER 2004

*REVISED MAY 2011 D Controlled Baseline

* O.
