TSB41BA3A

IEEE 1394b THREE-PORT CABLE TRANSCEIVER/ARBITER

TSB41BA3A Features

* Fully Supports Provisions of IEEE 1394b-2002 at S100, S100B, S200, S200B, S400, and S400B Signaling Rates (B Signifies IEEE 1394b Signaling)

* Fully Supports Provisions of IEEE 1394a-2000 and 1394-1995 Standards for High-Performance Serial Bus

* Fully Interoperable With Fir

TSB41BA3A General Description

The TSB41BA3A provides the digital and analog transceiver functions needed to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining .

TSB41BA3A Datasheet (218.39 KB)

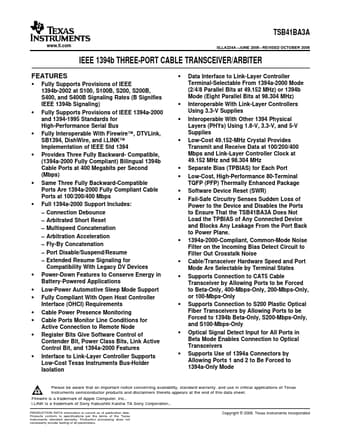

Preview of TSB41BA3A PDF

Datasheet Details

Part number:

TSB41BA3A

Manufacturer:

Texas Instruments ↗

File Size:

218.39 KB

Description:

Ieee 1394b three-port cable transceiver/arbiter.
