TSB41BA3B-EP IEEE 1394b Three-Port Cable Transceiver/Arbiter

ordering information The TSB41BA3B-EP provides the digital and analog transceiver functions needed to imple- ment a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line condit.

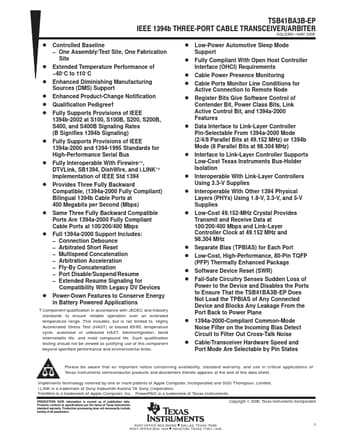

TSB41BA3BĆEP IEEE 1394b THREEĆPORT CABLE TRANSCEIVER/ARBITER SGLS362 MAY 2006 D Controlled Baseline One Assembly/Test Site, One Fabrication Site D Extended Temperature Performance of 40°C to 110°C D Enhanced Diminishing Manufacturing Sources (DMS) Support D Enhanced Product-Change Notification D Qualification Pedigree† D Fully Supports Provisions of IEEE 1394b-2002 at S100, S100B, S200, S200B, S400, and S400B Signaling Rates (B Signifies 1394b Signaling) D Fully Suppo.

TSB41BA3B-EP Features

* to Conserve Energy in Battery Powered Applications † Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle

TSB41BA3B-EP Datasheet (1.05 MB)
