TSB41AB3 IEEE 1394b THREE-PORT CABLE TRANSCEIVER/ARBITER

The TSB41AB3 provides the digital and analog transceiver functions required to implement a three-port node in a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining .

TSB41AB3 IEEE 1394aĆ2000 THREEĆPORT CABLE TRANSCEIVER/ARBITER D Fully Supports Provisions of IEEE 1394-1995 Standard for High Performance Serial Bus† and the 1394a-2000 Supplement D Fully Interoperable With FireWire and i.LINK Implementation of IEEE Std 1394 D Fully Compliant With Open HCI Requirements D Provides Three 1394a-2000 Fully Compliant Cable Ports at 100/200/400 Megabits Per Second (Mbits/s) D Full 1394a-2000 Support Includes: Connection Debounce, Arbitrated Short Reset, Multispeed .

TSB41AB3 Features

* to Conserve Energy in Battery Powered Applications Include: Automatic Device Power Down During Suspend, Device Power-Down Terminal, Link Interface Disable via LPS, and Inactive Ports Powered Down D Ultralow-Power Sleep Mode D Node Power Class Information Signaling for System Power Management D Cable

TSB41AB3 Datasheet (932.27 KB)

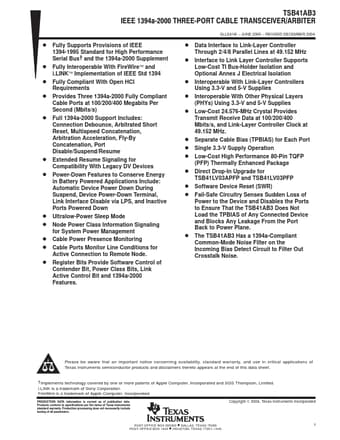

TSB41AB3 Datasheet Preview — Preview of TSB41AB3 PDF

Datasheet Details

Part number:

TSB41AB3

Manufacturer:

Texas Instruments ↗

File Size:

932.27 KB

Description:

Ieee 1394b three-port cable transceiver/arbiter.
