TSB41AB2I

IEEE 1394a-2000 Two-Port Cable Transceiver/Arbiter

TSB41AB2I Features

* D IEEE 1394a-2000 Compliant Common Mode Noise Filter on Incoming TPBIAS D Extended Resume Signaling for Compatibility With Legacy DV Devices, and Terminal- and Register-Compatibility With TSB41LV02A, Allow Direct Isochronous Transmit to Legacy DV Devices With Any Link Layer Even When Root D Power-Do

TSB41AB2I General Description

The TSB41AB2 provides the digital and analog transceiver functions needed to implement a two-port node in a cable-based IEEE 1394 network. The cable ports incorporate two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining conne.

TSB41AB2I Datasheet (2.00 MB)

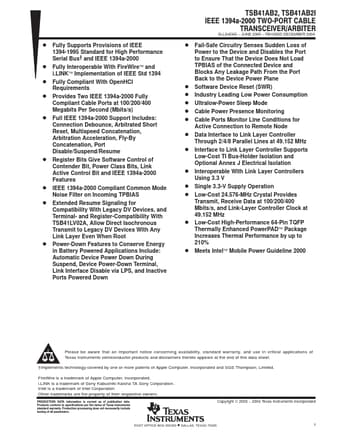

Preview of TSB41AB2I PDF

Datasheet Details

Part number:

TSB41AB2I

Manufacturer:

Texas Instruments ↗

File Size:

2.00 MB

Description:

Ieee 1394a-2000 two-port cable transceiver/arbiter.
D Fully Supports Provisions of IEEE 1394-1995 Standard for High Performance Serial Bus† and IEEE 1394a-2000 D Fully Interoperable With FireWire and i.
