74AVC16373 Datasheet, Latch, nexperia

74AVC16373 Features

  • Latch
  • Wide supply voltage range from 1.2 V to 3.6 V
  • Complies with JEDEC standards:
      – JESD8-7 (1.2 V to 1.95 V)
      – JESD8-5 (1.8 V to 2.7 V)

PDF File Details

Part number:

74AVC16373

Manufacturer:

nexperia ↗

File Size:

204.49kb

Download:

📄 Datasheet

Description:

16-bit d-type transparent latch. The 74AVC16373 is a 16-bit D-type transparent latch featuring separate D-type inputs for each latch and 3-state outputs for bus orie

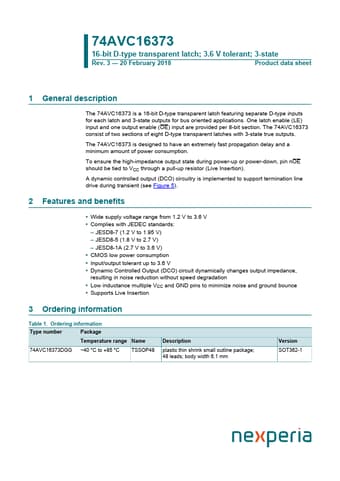

Datasheet Preview: 74AVC16373 📥 Download PDF (204.49kb)
Page 2 of 74AVC16373 Page 3 of 74AVC16373

74AVC16373 Application

  • Applications One latch enable (LE) input and one output enable (OE) input are provided per 8-bit section. The 74AVC16373 consist of two sections of
