74HCT14-Q100, 74HC14-Q100 Hex inverting Schmitt trigger

74HCT14-Q100 Description

74HC14-Q100; 74HCT14-Q100 Hex inverting Schmitt trigger Rev.7 * 13 August 2021 Product data sheet 1.General .
The 74HC14-Q100; 74HCT14-Q100 is a hex inverter with Schmitt-trigger inputs.

74HCT14-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)
* Specified from -40 °C to +85 °C and from -40 °C to +125 °C
* Wide supply voltage range from 2.0 to 6.0 V
* CMOS low power dissipation
* High noise immunity
* Unlimited input ris

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 74HCT14-Q100, 74HC14-Q100. Please refer to the document for exact specifications by model.

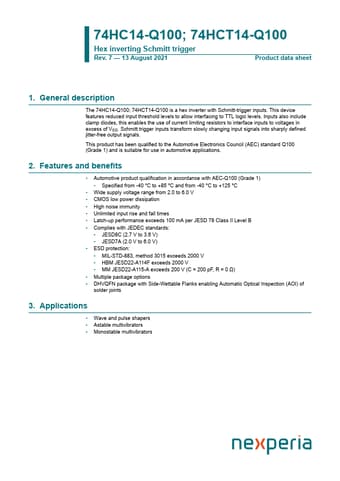

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
74HCT14-Q100, 74HC14-Q100
Manufacturer
nexperia ↗
File Size
266.61 KB
Datasheet
74HC14-Q100-nexperia.pdf
Description
Hex inverting Schmitt trigger
Note
This datasheet PDF includes multiple part numbers: 74HCT14-Q100, 74HC14-Q100.
Please refer to the document for exact specifications by model.
