UF3N170400B7S

SiC JFET

UF3N170400B7S Features

* Typical On-Resistance RDS(on), typ of 400 mW

* Voltage Controlled

* Maximum Operating Temperature of 175 C

* Extremely Fast Switching not Dependent on Temperature

* Low Gate Charge

* Low Intrinsic Capacitance

* This Device is Pb-Free, Halogen Free and is RoHS Compliant

UF3N170400B7S General Description

onsemi offers the High-Performance G3 SiC normally-On JFET transistors. This Series Exhibits Ultra-low on resistance (RDS(ON)) and Gate charge (QG) allowing for Low Conduction and Switching loss. The device Normally-On Characteristics with low RDS(ON) at VGS = 0 V is also ideal for current protectio.

UF3N170400B7S Datasheet (359.00 KB)

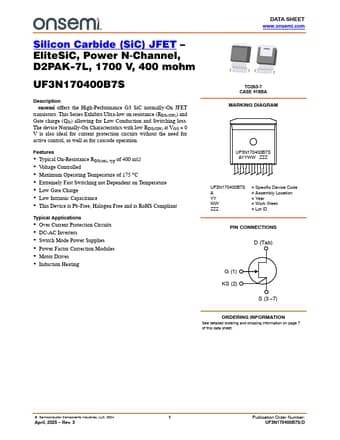

Preview of UF3N170400B7S PDF

Datasheet Details

Part number:

UF3N170400B7S

Manufacturer:

onsemi

File Size:

359.00 KB

Description:

Sic jfet.
