QPA5219 Wi-Fi Power Amplifier

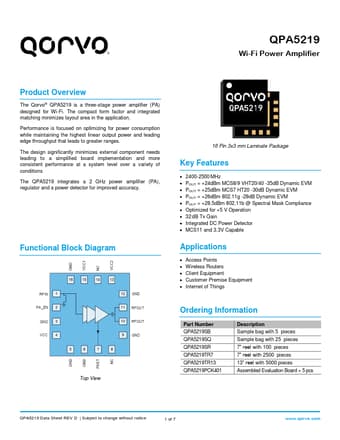

QPA5219 Wi-Fi Power Amplifier Product Overview The Qorvo® QPA5219 is a three-stage power amplifier (PA) designed for Wi-Fi. The compact form factor and integrated matching minimizes layout area in the application. Performance is focused on optimizing for power consumption while maintaining the highest linear output power and leading edge throughput that leads to greater ranges. The design significantly minimizes external component needs leading to a simplified board implementation and more cons.

QPA5219 Features

* 2400-2500 MHz

* POUT = +24dBm MCS8/9 VHT20/40 -35dB Dynamic EVM

* POUT = +25dBm MCS7 HT20 -30dB Dynamic EVM

* POUT = +26dBm 802.11g -28dB Dynamic EVM

* POUT = +28.5dBm 802.11b @ Spectral Mask Compliance

* Optimized for +5 V Operati

QPA5219 Datasheet (507.58 KB)
