QPA5263A Datasheet - qorvo

QPA5263A-qorvo.pdf

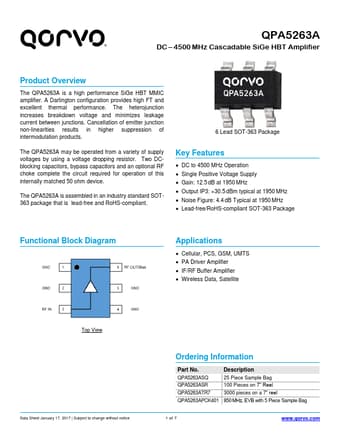

Preview of QPA5263A PDF
QPA5263A Datasheet Preview Page 2 QPA5263A Datasheet Preview Page 3

Datasheet Details

Part number:

QPA5263A

Manufacturer:

qorvo

File Size:

682.71 KB

Description:

Dc - 4500 mhz cascadable sige hbt amplifier.

QPA5263A, DC - 4500 MHz Cascadable SiGe HBT Amplifier

QPA5263A ® DC   4500 MHz Cascadable SiGe HBT Amplifier Product Overview The QPA5263A is a high performance SiGe HBT MMIC amplifier.

A Darlington configuration provides high FT and excellent thermal performance.

The heterojunction increases breakdown voltage and minimizes leakage current between junctions.

Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products.

6 Lead SOT-363 Package The QPA5263A may be operated from a variety of supp

QPA5263A Features

* DC to 4500 MHz Operation

* Single Positive Voltage Supply

* Gain: 12.5 dB at 1950 MHz

* Output IP3: +30.5 dBm typical at 1950 MHz

* Noise Figure: 4.4 dB T
