QPA5389A Datasheet, Amplifier, qorvo

QPA5389A Features

  • Amplifier
  • High Gain: 15.9 dB at 1950 MHz
  • Cascadable 50 Ω
  • Operates from Single Supply
  • Low Thermal Resistance Package Applications
  • Instrumentation

PDF File Details

Part number:

QPA5389A

Manufacturer:

qorvo

File Size:

700.15kb

Download:

📄 Datasheet

Description:

Dc - 4500 mhz cascadable sige hbt amplifier. The QPA5389A is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration provides high FT and excellent thermal perform

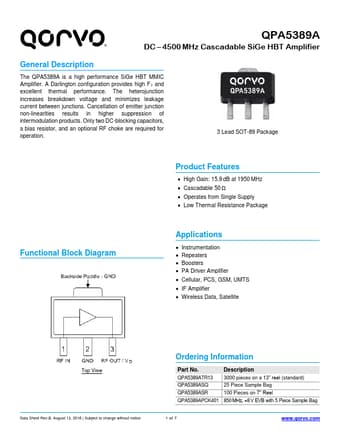

Datasheet Preview: QPA5389A 📥 Download PDF (700.15kb)
Page 2 of QPA5389A Page 3 of QPA5389A

QPA5389A Application

  • Applications
  • Instrumentation
  • Repeaters
  • Boosters
  • PA Driver Amplifier
  • Cellular, PCS, GSM, UMTS
