QPA5525Q

802.11ac/p Power amplifier

QPA5525Q Features

* chipset logic compatible control voltages and buffered PA enable pin (PAEN) all of which draw very low current to facilitate ease of use and compatibility with current and future transceiver generations. The QPA5525Q is assembled in a small footprint 4.0 x 4.0 x 0.85 mm 20-pin QFN package. Function

QPA5525Q Datasheet (428.92 KB)

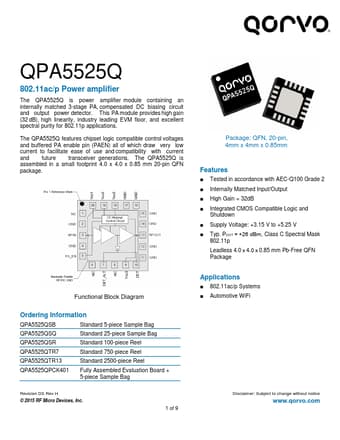

Preview of QPA5525Q PDF

Datasheet Details

Part number:

QPA5525Q

Manufacturer:

qorvo

File Size:

428.92 KB

Description:

802.11ac/p power amplifier.
® QPA5525Q 802.11ac/p Power amplifier The QPA5525Q is power amplifier module containing an internally matched 3-stage PA, compensated DC biasing circ.
