PE2300 - N-Channel Enhancement Mode Power MOSFET

Product Overview

semi one

📥 Download Datasheet

PE2300 N-Channel Enhancement Mode Power MOSFET by semi one - Datasheet Preview — Datasheet preview – PE2300

Datasheet Details

Part number	PE2300
Manufacturer	semi one
File Size	189.20 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	PE2300 Datasheet

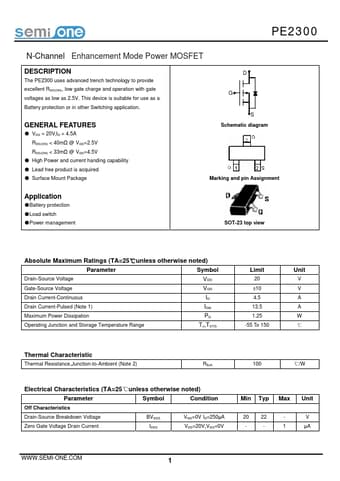

Additional preview pages of the PE2300 datasheet.

Product details

Description

The PE2300 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

VDS = 20V,ID = 4.5A RDS(ON) < 40mΩ @ VGS=2.5V RDS(ON) < 33mΩ @ VGS=4.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package D G S Schematic diagram Marking and pin Assignment.
