PE2301A - P-Channel Enhancement Mode Power MOSFET

Product Overview

semi one

📥 Download Datasheet

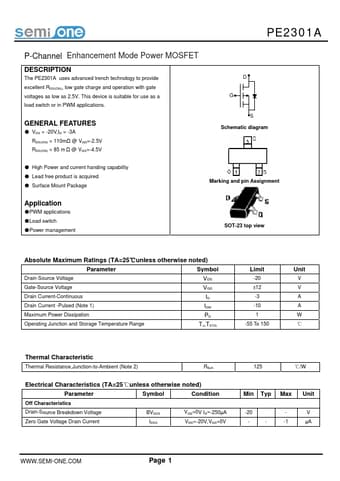

PE2301A P-Channel Enhancement Mode Power MOSFET by semi one - Datasheet Preview — Datasheet preview – PE2301A

Datasheet Details

Part number	PE2301A
Manufacturer	semi one
File Size	180.66 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	PE2301A Datasheet
Additional preview pages of the PE2301A datasheet.

Product details

Description

The PE2301A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

VDS = -20V,ID = -3A RDS(ON) = 110mΩ @ VGS=-2.5V RDS(ON) = 85 m Ω @ VGS=-4.5V D G S Schematic diagram.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package Marking and pin Assignment.
