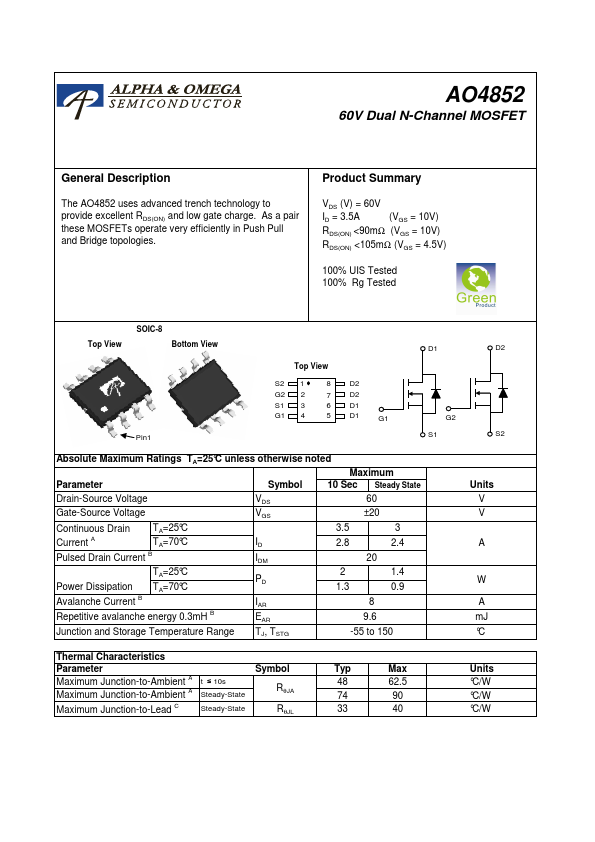

AO4852 - 60V Dual N-Channel MOSFET

General Description

The AO4852 uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

As a pair these MOSFETs operate very efficiently in Push Pull and Bridge topologies.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4852 60V Dual N-Channel MOSFET VBsemi
AO4852 Dual N-Channel MOSFET Kexin
AO4852 N-Channel MOSFET FreesCale
AO4852-HF Dual N-Channel MOSFET Kexin
AO4850 Dual N-Channel MOSFET Kexin

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AO4850 Dual N-Channel MOSFET
AO4854 Dual N-Channel MOSFET
AO4800 30V Dual N-Channel MOSFET
AO4800B 30V Dual N-Channel MOSFET
AO4800BL Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
AO4852 60V Dual N-Channel MOSFET General Description The AO4852 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. As a pair these MOSFETs operate very efficiently in Push Pull and Bridge topologies. Product Summary VDS (V) = 60V ID = 3.5A (VGS = 10V) RDS(ON) <90mΩ (VGS = 10V) RDS(ON) <105mΩ (VGS = 4.5V) 100% UIS Tested 100% Rg Tested Top View SOIC-8 Bottom View Pin1 D1 D2 Top View S2 1 8 D2 G2 2 7 D2 S1 3 6 D1 G1 4 5 D1 G1 G2 S1 S2 Absolute Maximum Ratings TA=25°C unless otherwise noted Maximum Parameter Symbol 10 Sec Steady State Drain-Source Voltage VDS 60 Gate-Source Voltage VGS ±20 Continuous Drain TA=25°C 3.5 3 Current A TA=70°C ID 2.8 2.
