2N7002W - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 0.34 A (VGS = 10V).
  • RDS(ON) ＜ 1.6Ω (VGS = 10V).
  • RDS(ON) ＜ 2.5Ω (VGS = 4.5V).
  • ESD Protected 1 Gate 2 Source 3 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current ( Steady State) Continuous Drain Current ( t < 5 s) Pulsed Drain Current (tp = 10 us) Gate.
  • Source ESD Rating Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Case Lea.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2N7002W N-Channel Power Mosfet GME
2N7002W Small Signal MOSFET SeCoS
2N7002W N-channel MOSFET Fairchild Semiconductor
2N7002W N-Channel MOSFET JCET
2N7002W N-Channel MOSFET Weitron Technology

Other Datasheets by Kexin Semiconductor

Part Number Description
2N7002 N-Channel Enhancement MOSFET
2N7002E N-Channel Enhancement MOSFET
2N7002K N-channel MOSFET
2N7002T N-Channel MOSFET
2N7002TE N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

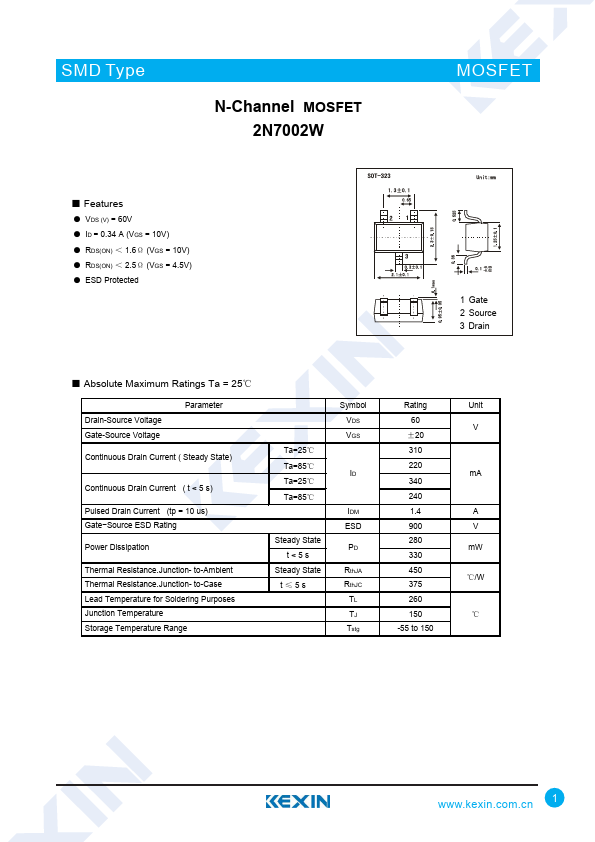

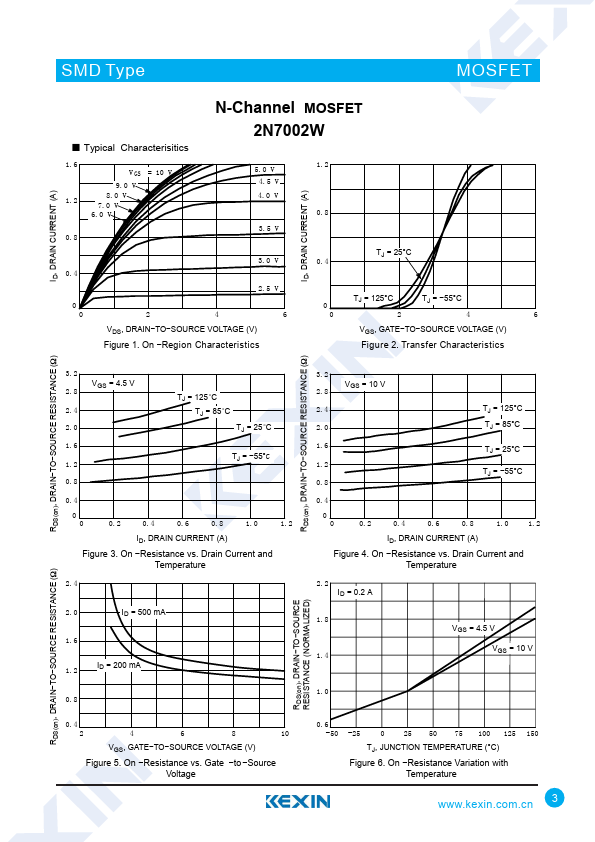

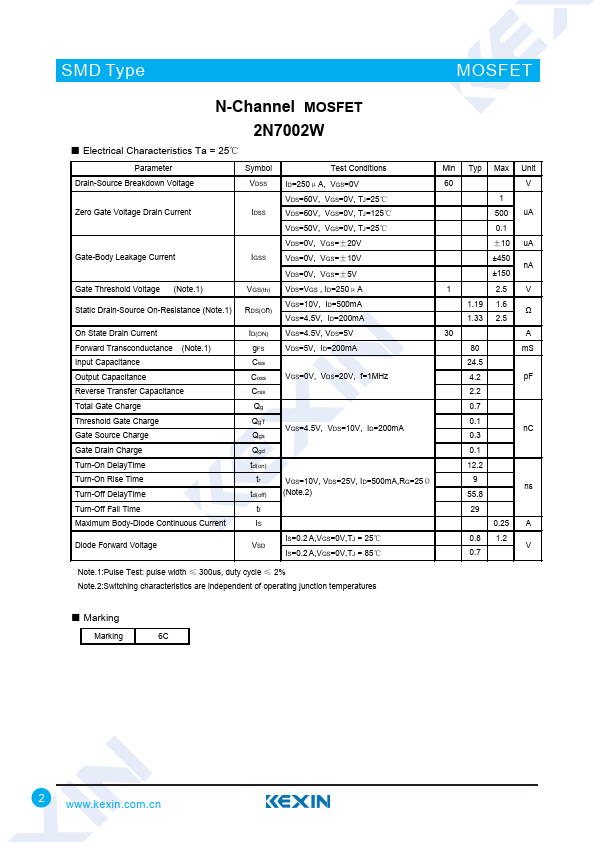

SMD Type N-Channel MOSFET 2N7002W MOSFET ■ Features ● VDS (V) = 60V ● ID = 0.34 A (VGS = 10V) ● RDS(ON) ＜ 1.6Ω (VGS = 10V) ● RDS(ON) ＜ 2.5Ω (VGS = 4.5V) ● ESD Protected 1 Gate 2 Source 3 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current ( Steady State) Continuous Drain Current ( t < 5 s) Pulsed Drain Current (tp = 10 us) Gate−Source ESD Rating Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Lead Temperature for Soldering Purposes Junction Temperature Storage Temperature Range Ta=25℃ Ta=85℃ Ta=25℃ Ta=85℃ Steady State t<5s Steady State t≤5s Symbol VDS VGS ID IDM ESD PD RthJA RthJC TL TJ Tstg Rating 60 ±20 310 220 340 240 1.
