HGTD6N50E1, 6A/ 400V and 500V N-Channel IGBTs

The HGTD6N40E1, HGTD6N40E1S, HGTD6N50E1, and HGTD6N50E1S are n-channel enhancement-mode insulated gate bipolar transistors (IGBTs) designed for high voltage, low on-dissipation applications such as switching regulators and motor drivers. These types can be operated directly from low power integrated.

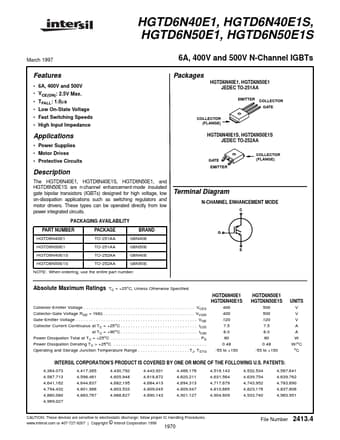

Datasheet Preview Page 1

HGTD6N50E1_IntersilCorporation.pdf

HGTD6N50E1 Datasheet Preview — Preview of HGTD6N50E1 PDF

HGTD6N50E1 Datasheet Preview Page 2

HGTD6N50E1 Datasheet Preview Page 3

Datasheet Details

Part number:

HGTD6N50E1

Manufacturer:

Intersil Corporation

File Size:

32.55 KB

Description:

6A/ 400V and 500V N-Channel IGBTs

HGTD6N50E1 Features

* 6A, 400V and 500V

* VCE(ON): 2.5V Max.

* TFALL: 1.0µs

* Low On-State Voltage

* Fast Switching Speeds

* High Input Impedance Applications

* Power Supplies

* Motor Drives

* Protective Circuits HGTD6N40E1S, HGTD6N50E1S JEDEC TO
