2SA1981 - PNP Silicon Transistor

2SA1981 Description

Semiconductor 2SA1981 PNP Silicon Transistor .
Audio power amplifier application Features. High hFE : hFE=100~320. Complementary pair with 2SC5344 Ordering Information.

2SA1981 Features

* High hFE : hFE=100~320
* Complementary pair with 2SC5344 Ordering Information Type NO. 2SA1981 Marking A1981 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 PIN Connections 1. Emitter

📥 Download Datasheet

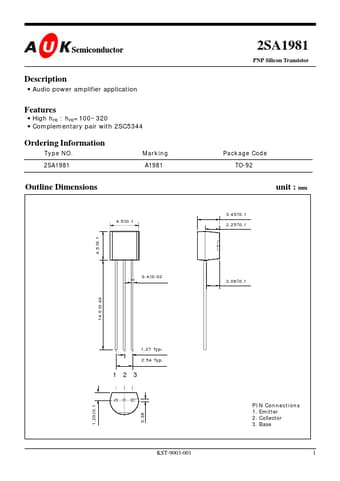

Preview of 2SA1981 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1981
Manufacturer
AUK corp
File Size
85.21 KB
Datasheet
2SA1981_AUKcorp.pdf
Description
PNP Silicon Transistor
