2SA1981SF - PNP Silicon Transistor

2SA1981SF Description

Semiconductor 2SA1981SF PNP Silicon Transistor .
Audio power amplifier application Features. High hFE : hFE=100~320. Complementary pair with 2SC5344SF Ordering Informati.

2SA1981SF Features

* High hFE : hFE=100~320
* Complementary pair with 2SC5344SF Ordering Information Type NO. 2SA1981SF Marking EA : hFE rank Package Code SOT-23F Outline Dimensions 2.4±0.1 1.6±0.1 unit : mm 1 2.9±0.1 1.90 BSC 3 0.4±0.05 2 0.15±0.05 KST-2067-001 0.9±0.1 0~0.1 PIN Connections

📥 Download Datasheet

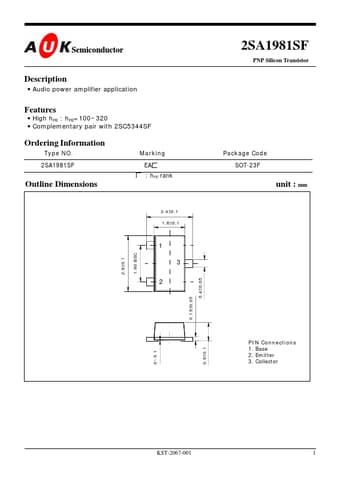

Preview of 2SA1981SF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1981SF
Manufacturer
AUK corp
File Size
82.76 KB
Datasheet
2SA1981SF_AUKcorp.pdf
Description
PNP Silicon Transistor
