2SA1981S - PNP Silicon Transistor

2SA1981S Description

Semiconductor 2SA1981S PNP Silicon Transistor .
Audio power amplifier application Features. High hFE : hFE=100~320. Complementary pair with 2SC5344S Ordering Informatio.

2SA1981S Features

* High hFE : hFE=100~320
* Complementary pair with 2SC5344S Ordering Information Type NO. 2SA1981S Marking EA : hFE rank Package Code SOT-23 Outline Dimensions 2.4±0.1 1.30±0.1 unit : mm 1 1.90 Typ. 3 2 0.4 Typ. 0.45~0.60 0.2 Min. 1.12 Max. 2.9±0.1 KST-2005-001 0.124 PIN C

📥 Download Datasheet

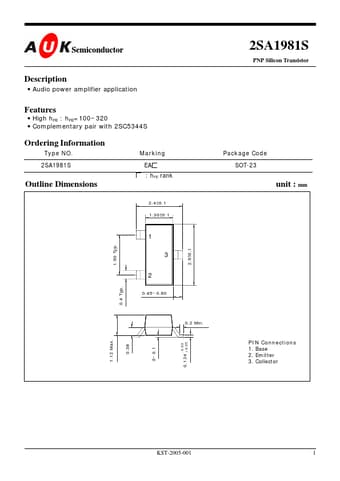

Preview of 2SA1981S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1981S
Manufacturer
AUK corp
File Size
83.71 KB
Datasheet
2SA1981S_AUKcorp.pdf
Description
PNP Silicon Transistor
