APTM100H35FT, MOSFET Power Module

APTM100H35FT Full - Bridge MOSFET Power Module VBUS Q1 Q3 VDSS = 1000V RDSon = 350mΩ max @ Tj = 25°C ID = 22A @ Tc = 25°C Application * Weldi.

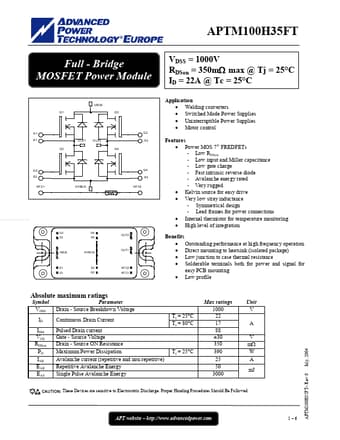

datasheet Preview Page 1 from Datasheet4u.com

APTM100H35FT_AdvancedPowerTechnology.pdf

APTM100H35FT Datasheet Preview — Preview of APTM100H35FT PDF

Datasheet Details

Part number:

APTM100H35FT

Manufacturer:

Advanced Power Technology

File Size:

336.29 KB

Description:

MOSFET Power Module

Features

* Power MOS 7® FREDFETs - Low RDSon - Low input and Miller capacitance - Low gate charge - Fast intrinsic reverse diode - Avalanche energy rated - Very rugged
* Kelvin source for easy drive
* Very low stray inductance - Symmetrical design - Lead frames for power connections
