APTM100H35FT3 Datasheet - Advanced Power Technology

APTM100H35FT3, MOSFET Power Module

APTM100H35FT3 Full - Bridge MOSFET Power Module 13 14 Q1 Q3 VDSS = 1000V RDSon = 350mΩ typ @ Tj = 25°C ID = 22A @ Tc = 25°C Application * Wel.

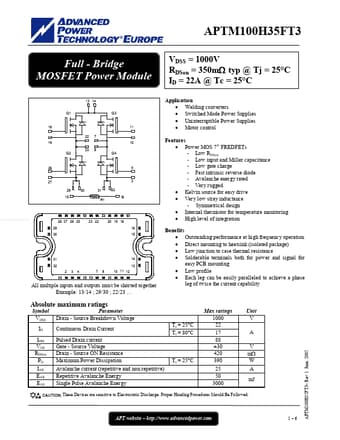

datasheet Preview Page 1 from Datasheet4u.com

APTM100H35FT3_AdvancedPowerTechnology.pdf

APTM100H35FT3 Datasheet Preview — Preview of APTM100H35FT3 PDF

Datasheet Details

Part number:

APTM100H35FT3

Manufacturer:

Advanced Power Technology

File Size:

345.96 KB

Description:

MOSFET Power Module

Features

* Power MOS 7® FREDFETs - Low RDSon - Low input and Miller capacitance - Low gate charge - Fast intrinsic reverse diode - Avalanche energy rated - Very rugged
* Kelvin source for easy drive
* Very low stray inductance - Symmetrical design
* Internal thermistor for tem
