APTM100H18FG MOSFET Power Module

APTM100H18FG Description

APTM100H18FG OUT1 OUT2 APTM100H18FG * Rev 1 July, 2006 Full - Bridge MOSFET Power Module VDSS = 1000V RDSon = 180mΩ typ @ Tj = 25°C ID = 43A.

APTM100H18FG Features

* Power MOS 7® FREDFETs G4 - Low RDSon - Low input and Miller capacitance - Low gate charge S4 - Fast intrinsic reverse diode - Avalanche energy rated - Very rugged
* Kelvin source for easy drive
* Very low stray inductance - Symmetrical design - M5 power connectors

📥 Download Datasheet

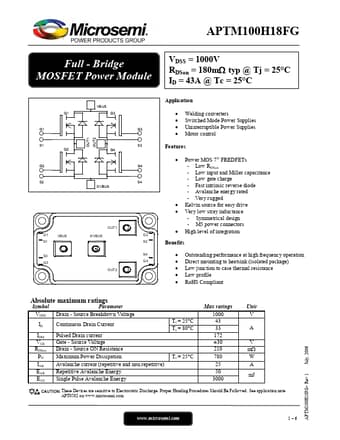

Preview of APTM100H18FG PDF
