ALN2500AT

Internally Matched LNA Module

ALN2500AT Features

* S21 = 12.95 dB @ 2300 MHz = 11.45 dB @ 2700 MHz

* NF = 0.65 dB @ 2300MHz = 0.85 dB @ 2700MHz

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 2500 MHz, Zo.sys = 50 ohm Parameter Frequency R

ALN2500AT General Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

ALN2500AT Datasheet (493.90 KB)

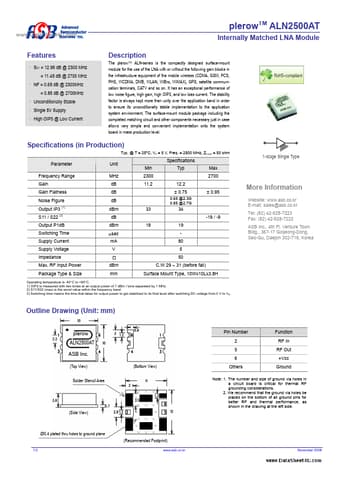

Preview of ALN2500AT PDF

Datasheet Details

Part number:

ALN2500AT

Manufacturer:

Advanced Semiconductor

File Size:

493.90 KB

Description:

Internally matched lna module.
