ALN2502AT - Internally Matched LNA Module

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on

ALN2502AT Features

* S21 = 12.9 dB @ 2300 MHz = 11.5 dB @ 2700 MHz

* NF = 0.6 dB @ 2300 MHz = 0.65 dB @ 2700 MHz

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 2500 MHz, Zo.sys = 50 ohm Parameter Frequency Ra

ALN2502AT_AdvancedSemiconductor.pdf

Preview of ALN2502AT PDF

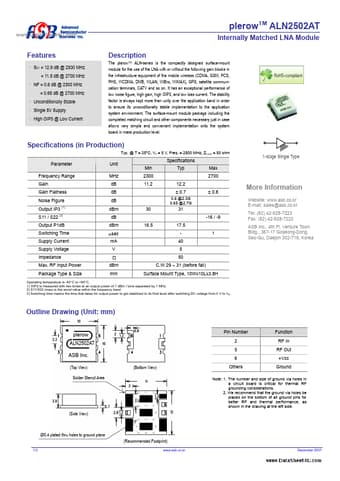

ALN2502AT Datasheet Preview Page 2 ALN2502AT Datasheet Preview Page 3
