ALN2504AT - Internally Matched LNA Module

ALN2504AT Description

plerowTM ALN2504AT www.DataSheet4U.com Internally Matched LNA Module .
The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrast.

ALN2504AT Features

* S21 = 14.6 dB @ 2300 MHz = 13.4 dB @ 2700 MHz
* NF of 0.8 dB over Frequency
* Unconditionally Stable
* Single 5V Supply
* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 2500 MHz, Zo. sys = 50 ohm Parameter Frequency Range Gain Gain Fl

📥 Download Datasheet

Preview of ALN2504AT PDF

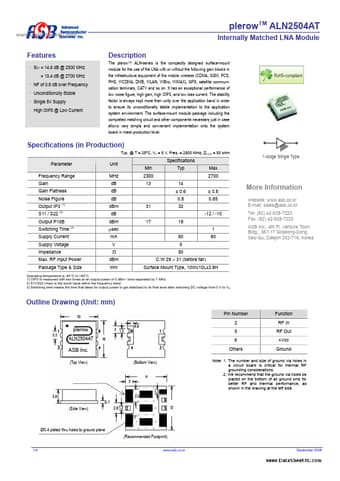

datasheet Preview Page 2 datasheet Preview Page 3
