ALN2501AT Datasheet - Advanced Semiconductor

ALN2501AT, Internally Matched LNA Module

plerowTM ALN2501AT www.DataSheet4U.com Internally Matched LNA Module .
The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrast.

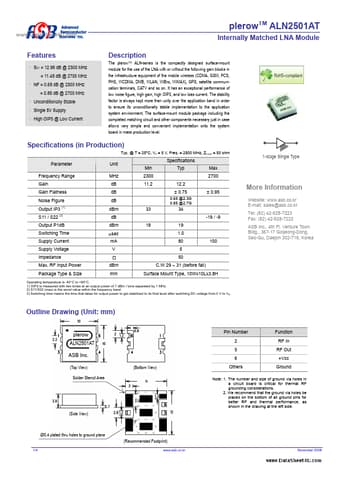

datasheet Preview Page 1 from Datasheet4u.com

ALN2501AT_AdvancedSemiconductor.pdf

ALN2501AT Datasheet Preview — Preview of ALN2501AT PDF

Datasheet Details

Part number:

ALN2501AT

Manufacturer:

Advanced Semiconductor

File Size:

604.65 KB

Description:

Internally Matched LNA Module

Features

* S21 = 12.95 dB @ 2300 MHz = 11.45 dB @ 2700 MHz
* NF = 0.65 dB @ 2300 MHz = 0.85 dB @ 2700 MHz
* Unconditionally Stable
* Single 5V Supply
* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 2500 MHz, Zo. sys = 50 ohm Parameter Frequency
