BLF6G22-45 Datasheet - Ampleon

Power LDMOS transistor

BLF6G22-45 Features

* Typical 2-carrier W-CDMA performance at frequencies of 2110 MHz and 2170 MHz, a supply voltage of 28 V and an IDq of 405 mA:

* Average output power = 2.5 W

* Power gain = 18.5 dB (typ)

* Efficiency = 13 %

* ACPR = 49 dBc

* Easy power control

* Integrated ESD protection

BLF6G22-45 General Description

45 W LDMOS power transistor for base station applications at frequencies from 2000 MHz to 2200 MHz. Table 1. Typical performance RF performance at Tcase = 25 C in a common source class-AB production test circuit. Mode of operation f VDS PL(AV) Gp D (MHz) (V) (W) (dB) (%) 2-carrier W-CDMA.

BLF6G22-45 Datasheet (307.36 KB)

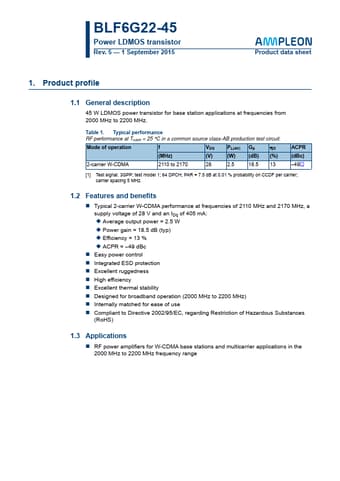

Preview of BLF6G22-45 PDF

Datasheet Details

Part number:

BLF6G22-45

Manufacturer:

Ampleon

File Size:

307.36 KB

Description:

Power ldmos transistor.
