ADP2102 - Synchronous Step-Down DC-DC Converter

Analog Devices

📥 Download Datasheet

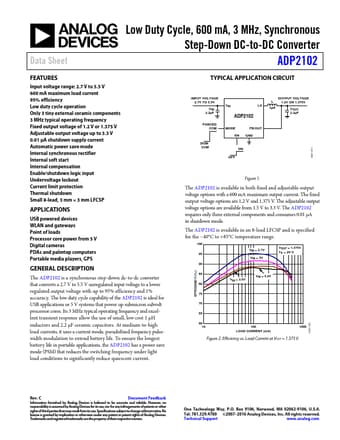

ADP2102 Datasheet Preview — Preview of ADP2102 PDF

Datasheet Details

Part number: ADP2102
Manufacturer: Analog Devices ↗
File Size: 729.70 KB
Datasheet: ADP2102_AnalogDevices.pdf
Description: Synchronous Step-Down DC-DC Converter

ADP2102 Product details

Description

The ADP2102 is a synchronous step-down dc-to-dc converter that converts a 2.7 V to 5.5 V unregulated input voltage to a lower regulated output voltage with up to 95% efficiency and 1% accuracy.

Features

Input voltage range: 2.7 V to 5.5 V 600 mA maximum load current 95% efficiency Low duty cycle operation Only 3 tiny external ceramic components 3 MHz typical operating frequency Fixed output voltage of 1.2 V or 1.375 V Adjustable output voltage up to 3.3 V 0.01 µA shutdown supply current Automatic power save mode Internal synchronous rectifier Internal soft start Internal compensation Enable/shutdown logic input Undervoltage lockout Current limit protection Thermal shutdown Small 8-lead, 3 mm ×.
