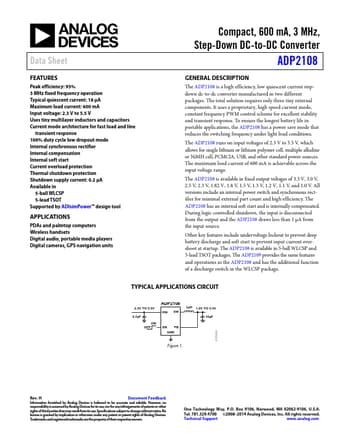

ADP2108 - Step-Down DC-to-DC Converter

Analog Devices

Datasheet Details

The ADP2108 is a high efficiency, low quiescent current stepdown dc-to-dc converter manufactured in two different packages.

Peak efficiency: 95% 3 MHz fixed frequency operation Typical quiescent current: 18 μA Maximum load current: 600 mA Input voltage: 2.3 V to 5.5 V Uses tiny multilayer inductors and capacitors Current mode architecture for fast load and line transient response 100% duty cycle low dropout mode Internal synchronous rectifier Internal compensation Internal soft start Current overload protection Thermal shutdown protection Shutdown supply current: 0.2 μA Available in 5-ball.
