ADP2106, ADP2105 Datasheet - Analog Devices

ADP2106 Step-Down DC-to-DC Converter

The ADP2105/ADP2106/ADP2107 are low quiescent current, synchronous, step-down dc-to-dc converters in a compact 4 mm × 4 mm LFCSP package. At medium to high load currents, these devices use a current mode, constant frequency pulse-width modulation (PWM) control scheme for excellent stability and tra.

ADP2106 Features

* Extremely high 97% efficiency Ultralow quiescent current: 20 μA 1.2 MHz switching frequency 0.1 μA shutdown supply current Maximum load current ADP2105: 1 A ADP2106: 1.5 A ADP2107: 2 A Input voltage: 2.7 V to 5.5 V Output voltage: 0.8 V to VIN Maximum duty cycle: 100% Smoothly transitions into low d

ADP2105_AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: ADP2106, ADP2105. Please refer to the document for exact specifications by model.

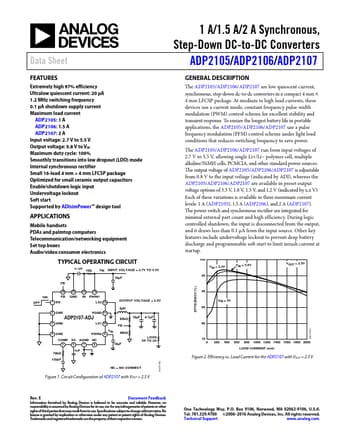

ADP2106 Datasheet Preview Page 2 ADP2106 Datasheet Preview Page 3

Datasheet Details

Part number:

ADP2106, ADP2105

Manufacturer:

Analog Devices ↗

File Size:

0.98 MB

Description:

Step-down dc-to-dc converter.

Note:

This datasheet PDF includes multiple part numbers: ADP2106, ADP2105.
Please refer to the document for exact specifications by model.
