HMC347B - SPDT Switch

HMC347B Description

Data Sheet GaAs, SPDT Switch, Nonreflective, 0.1 GHz to 20 GHz HMC347B .
The HMC347B is a broadband, nonreflective gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT) SPDT monolithic microwave i.

HMC347B Features

* Broadband frequency range: 0.1 GHz to 20 GHz Nonreflective, 50 Ω design Low insertion loss: 1.7 dB typical to 20 GHz High isolation: 46 dB typical to 20 GHz High input linearity Input P1dB: 25 dBm typical Input IP3: 41 dBm typical High power handling 27 dBm through path 25 dBm terminated path 10-pad

HMC347B Applications

* Test instrumentations Microwave radios and very small aperture terminals (VSATs) Military radios, radars, electronic counter measure (ECMs) Broadband telecommunications systems FUNCTIONAL BLOCK DIAGRAM RFC CTRLB 3 4 5 CTRLA CTRLA 2 6 CTRLB RF1 1 50Ω 10 9 8 50Ω CTRLA CTRLB CTRLA Figure 1

📥 Download Datasheet

Preview of HMC347B PDF

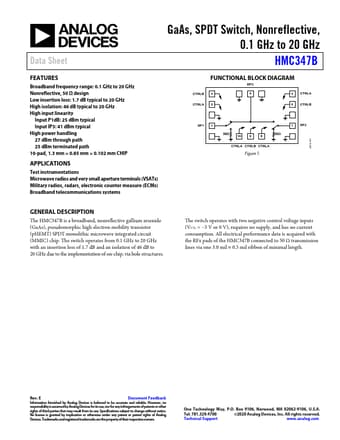

datasheet Preview Page 2 datasheet Preview Page 3
