HMC347C8 Datasheet, Switch, Analog Devices

HMC347C8 Features

• Switch Isolation: 50 dB @ 2.5 GHz 36 dB @ 8 GHz Insertion Loss: 2 dB Typical Non-Reflective Design Surface Mount Ceramic Package General Description The HMC347C8 is a broadband high isolation

PDF File Details

Part number:

HMC347C8

Manufacturer:

Analog Devices ↗

File Size:

515.99kb

Download:

📄 Datasheet

Description:

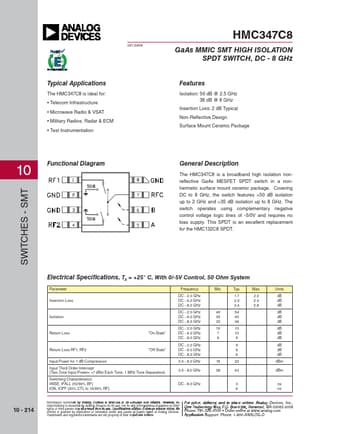

Gaas mmic smt high isolation spdt switch. The HMC347C8 is a broadband high isolation nonreflective GaAs MESFET SPDT switch in a nonhermetic surface mount ceramic package. Cove

HMC347C8 Application

• Applications The HMC347C8 is ideal for:
• Telecom Infrastructure
• Microwave Radio & VSAT
• Military Radios, Radar & ECM
