HMC347 Features

  • Switch High Isolation: >40 dB @ 20 GHz Low Insertion Loss: 1.6 dB @ 20 GHz Non-Reflective Design Small Size: 1.3 x 0.8 x 0.1 mm General Description The HMC347 is a broadband non-reflective GaA

PDF File Details

Part number:

HMC347

Manufacturer:

Analog Devices ↗

File Size:

265.32kb

Download:

📄 Datasheet

Description:

Gaas mmic spdt non-reflective switch. The HMC347 is a broadband non-reflective GaAs MESFET SPDT MMIC chip. Covering DC to 20 GHz, the switch offers high isolation and low

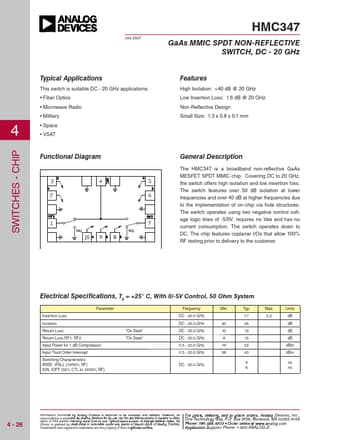

Datasheet Preview: HMC347 📥 Download PDF (265.32kb)
Page 2 of HMC347 Page 3 of HMC347

HMC347 Application

  • Applications This switch is suitable DC - 20 GHz applications:
  • Fiber Optics
  • Microwave Radio
  • Military 4
  • Space
