HMC347G8 Datasheet, Switch, Analog Devices

HMC347G8 Features

  • Switch Isolation: 42 dB @ 2.5 GHz 30 dB @ 6 GHz Insertion Loss: 2 dB @ 6 GHz Non-Reflective Design 8 Lead Hermetic SMT Package 10 Functional Diagram General Description The HMC347G8 is a br

PDF File Details

Part number:

HMC347G8

Manufacturer:

Analog Devices ↗

File Size:

487.07kb

Download:

📄 Datasheet

Description:

Gaas mmic hermetic smt spdt switch. The HMC347G8 is a broadband high isolation nonreflective GaAs MESFET SPDT switch in a 8 lead glass/metal (hermetic) surface mount pac

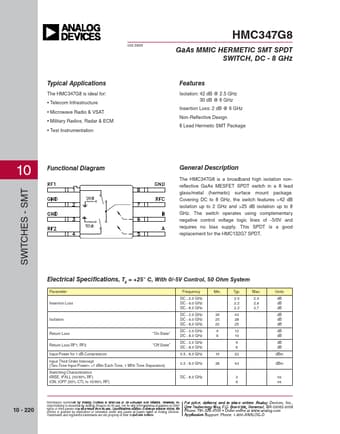

Datasheet Preview: HMC347G8 📥 Download PDF (487.07kb)
Page 2 of HMC347G8 Page 3 of HMC347G8

HMC347G8 Application

  • Applications The HMC347G8 is ideal for:
  • Telecom Infrastructure
  • Microwave Radio & VSAT
  • Military Radios, Radar & ECM
