HMC347A Datasheet, switch equivalent, Analog Devices

HMC347A Features

  • Switch High Isolation: >40 dB @ 20 GHz Low Insertion Loss: 2.1 dB @ 20 GHz Non-Reflective Design Small Size: 1.22 x 0.85 x 0.1 mm General Description The HMC347A is a broadband non-reflective

PDF File Details

Part number:

HMC347A

Manufacturer:

Analog Devices ↗

File Size:

173.73kb

Download:

📄 Datasheet

Description:

Gaas phemt spdt non-reflective switch. The HMC347A is a broadband non-reflective GaAs pHEMT SPDT MMIC chip. Covering DC to 20 GHz, the switch offers high isolation and low

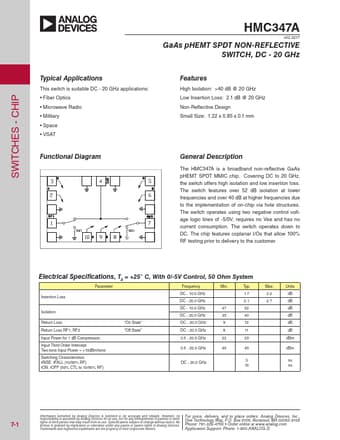

Datasheet Preview: HMC347A 📥 Download PDF (173.73kb)
Page 2 of HMC347A Page 3 of HMC347A

HMC347A Application

  • Applications This switch is suitable DC - 20 GHz applications:
  • Fiber Optics
  • Microwave Radio
  • Military
  • Space <
