CS3N120FA9R

Silicon N-Channel Power MOSFET

CS3N120FA9R Features

* l Fast Switching l Low ON Resistance(Rdson≤6.0Ω) l Low Gate Charge (Typical Data:19.7 nC) l Low Reverse transfer capacitances(Typical:2.2 pF) l 100% Single Pulse avalanche energy Test Applications: Electric welder、Inverter. Absolute(Tc= 25℃ unless otherwise specified): Symbol Parameter VDSS ID ID

CS3N120FA9R General Description

CS3N120F A9R, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization .

CS3N120FA9R Datasheet (387.51 KB)

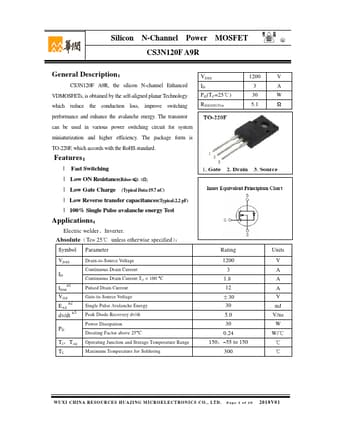

Preview of CS3N120FA9R PDF

Datasheet Details

Part number:

CS3N120FA9R

Manufacturer:

CR Micro

File Size:

387.51 KB

Description:

Silicon n-channel power mosfet.
