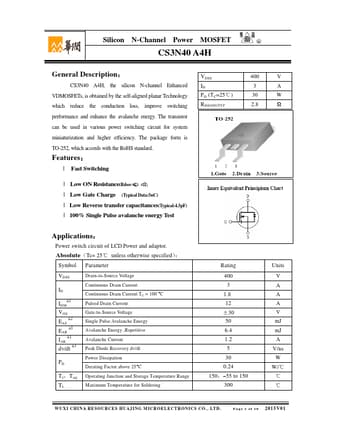

CS3N40A4H Datasheet, Mosfet, Huajing Microelectronics

CS3N40A4H Features

• Mosfet l Fast Switching l Low ON Resistance(Rdson≤3.4Ω) l Low Gate Charge (Typical Data:5nC) l Low Reverse transfer capacitances(Typical:4.5pF) l 100% Single Pulse avalanche energy Test Ap

PDF File Details

Part number:

CS3N40A4H

Manufacturer:

Huajing Microelectronics

File Size:

195.43kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. VDSS 400 V CS3N40 A4H, the silicon N-channel Enhanced ID 3A VDMOSFETs, is obtained by the self-aligned planar Technology PD (TC

CS3N40A4H Application

• Applications Power switch circuit of LCD Power and adaptor. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Parameter VDSS ID IDMa1 VGS EAS
