CS3N40A23 Datasheet, mosfet equivalent, Huajing Microelectronics

CS3N40A23 Features

  • Mosfet l Fast Switching l Low ON Resistance(Rdson≤3.4Ω) l Low Gate Charge (Typical Data:5nC) l Low Reverse transfer capacitances(Typical:4.5pF) l 100% Single Pulse avalanche energy Test Appl

PDF File Details

Part number:

CS3N40A23

Manufacturer:

Huajing Microelectronics

File Size:

245.09kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. VDSS 400 V CS3N40 A23, the silicon N-channel Enhanced ID 2 A VDMOSFETs, is obtained by the self-aligned planar Technology PD

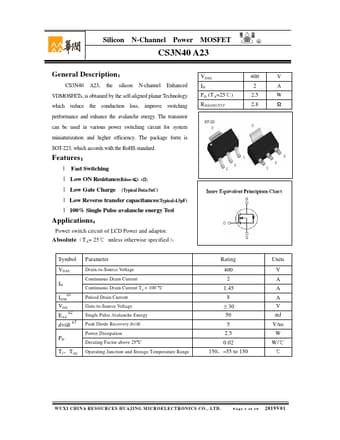

Datasheet Preview: CS3N40A23 📥 Download PDF (245.09kb)
Page 2 of CS3N40A23 Page 3 of CS3N40A23

CS3N40A23 Application

  • Applications Power switch circuit of LCD Power and adaptor. Absolute(TA= 25℃ unless otherwise specified): Symbol VDSS ID IDMa1 VGS EAS a2 dv/dt a
