CS3N06AE-G Datasheet, Mosfet, CR Micro

CS3N06AE-G Features

• Mosfet l Fast Switching l Low ON Resistance (Rdson≤100mΩ) l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test l Halogen Free Applications： Power

PDF File Details

Part number:

CS3N06AE-G

Manufacturer:

CR Micro

File Size:

510.91kb

Download:

📄 Datasheet

Description:

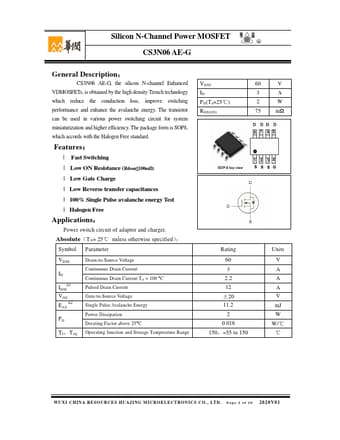

Silicon n-channel power mosfet. CS3N06 AE-G, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction

CS3N06AE-G Application

• Applications Power switch circuit of adaptor and charger. Absolute（TA= 25℃ unless otherwise specified）： Symbol Parameter VDSS ID IDMa1 VGS EAS a
