CS3N06AS1-G Datasheet, Mosfet, CR Micro

CS3N06AS1-G Features

  • Mosfet l Fast Switching l Low ON Resistance (Rdson≤100mΩ) l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test l Halogen Free Applications: Power

PDF File Details

Part number:

CS3N06AS1-G

Manufacturer:

CR Micro

File Size:

526.60kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS3N06 AS1-G the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction

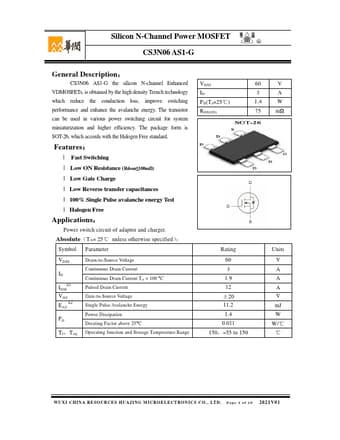

Datasheet Preview: CS3N06AS1-G 📥 Download PDF (526.60kb)
Page 2 of CS3N06AS1-G Page 3 of CS3N06AS1-G

CS3N06AS1-G Application

  • Applications Power switch circuit of adaptor and charger. Absolute(TA= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1 VGS EAS a
