HPA600R120PC-G Datasheet - CR Micro

Silicon N-Channel Power MOSFET

HPA600R120PC-G Features

* l Fast Switching l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test l Halogen Free 650 V 30 A 31 W 0.10 Ω 4.3 uJ Applications： PC、Server power. Absolute（TJ= 25℃ unless otherwise specified）： Symbol Parameter VDSS ID a1 IDMa2 VGSS EAS a3 dv/dt

HPA600R120PC-G General Description

HPA600R120PC-G, the silicon N-channel Enhanced MOSFETs, is obtained by the super junction technology which reduces the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher.

HPA600R120PC-G Datasheet (381.02 KB)

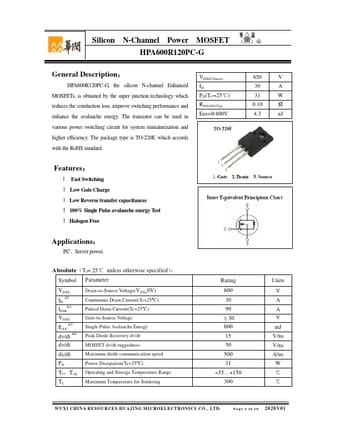

Preview of HPA600R120PC-G PDF

Datasheet Details

Part number:

HPA600R120PC-G

Manufacturer:

CR Micro

File Size:

381.02 KB

Description:

Silicon n-channel power mosfet.
